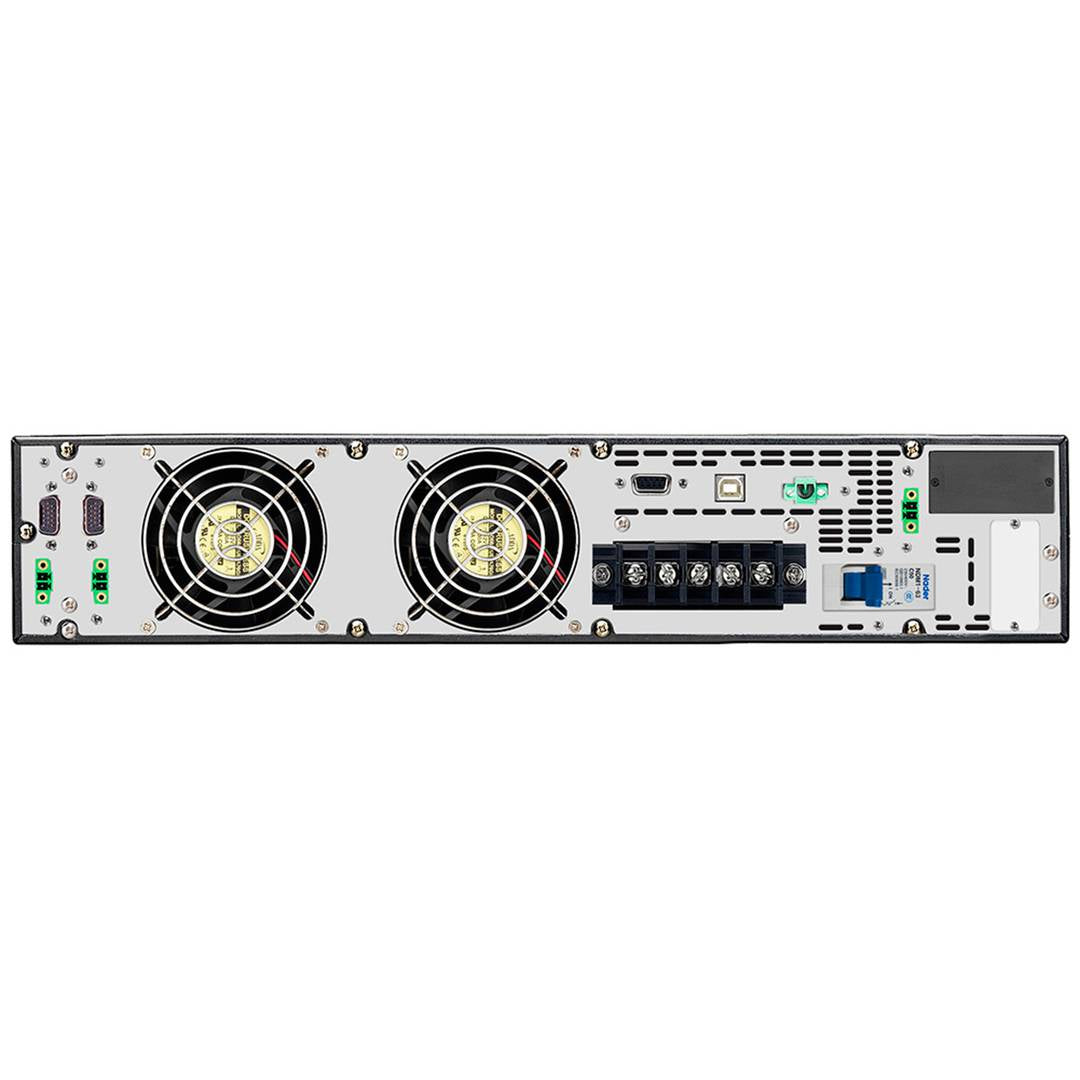

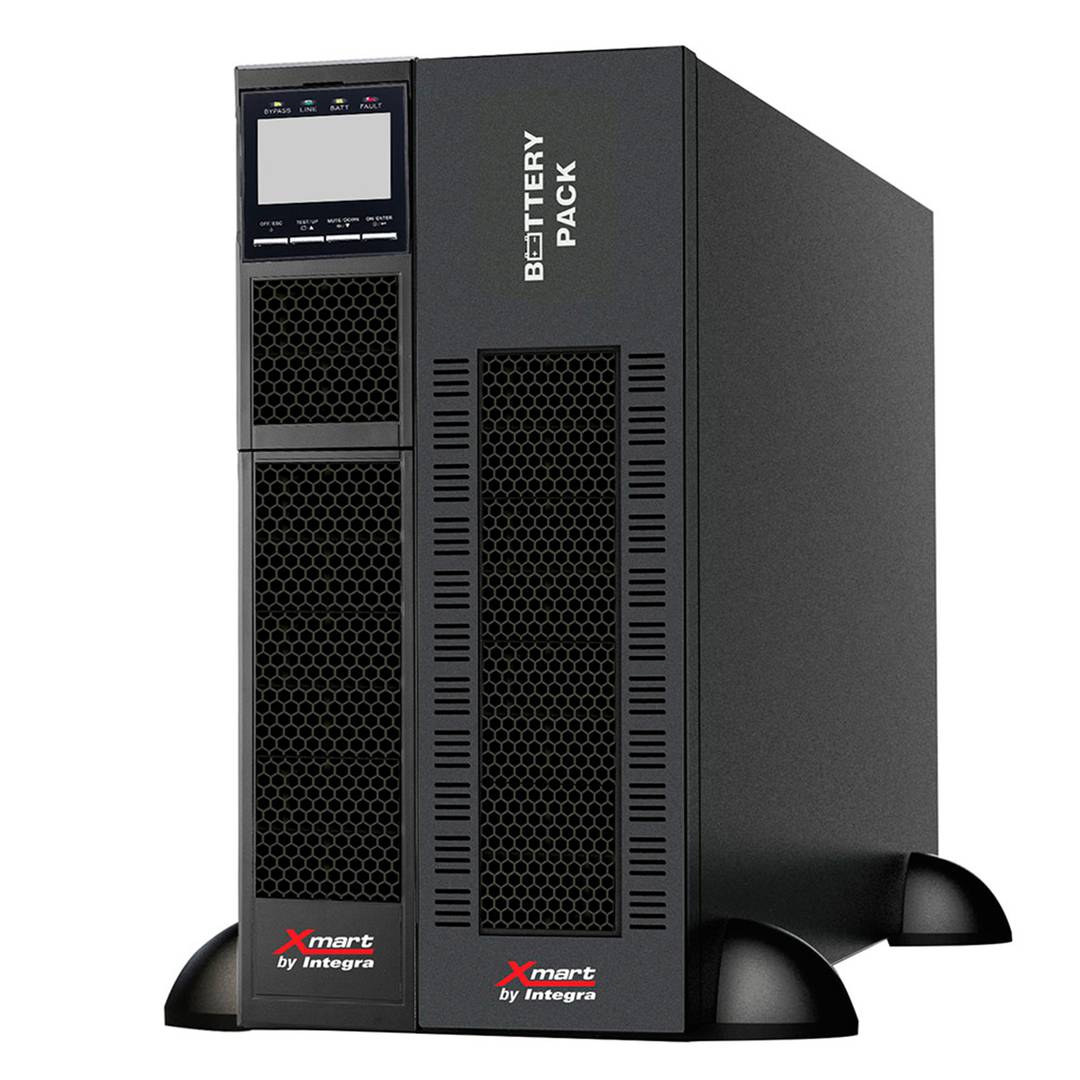

Optima-RT10 10000VA 10000W Tower Online UPS

SKU: UP145
🛒 PVP RECOMENDADO
€2.257,25
Base imponible sin impuestos incluidos

CARACTERÍSTICAS DEL PRODUCTO

  • UPS in two-module tower format: UPS and batteries (BAT).
  • Operating voltage: 230V with 50 or 60Hz auto-detection. Auto-detection 4.2A.
  • Features an AC power connection terminal (Terminal Block type) in the UPS module. INPUT AC (L.N, GND), OUTPUT AC (L, N, GND).
  • The UPS module connects to the battery module (BAT) via a DC cable supplied with the equipment.
  • Operating modes: On-line, battery mode, bypass mode, eco mode, frequency converter mode, fault mode.
  • LCD display for monitoring the UPS operating mode.
  • Front panel with ON/MUTE start buttons, Select to display UPS parameters, OFF/ENTER, UPS shutdown and confirmation when in configuration mode.
  • Audible alarm at startup, battery mode, overload, low battery and UPS failure.

Low stock: 3 left

    View full details
    Single-phase Uninterruptible Power Supply (UPS) with on-line double conversion technology, which uses a rectifier and current inverter, offering an electrical signal free of harmonics and voltage peaks, protecting the installation where they are connected. Device designed to provide electrical current for a limited time to all devices connected to the UPS. It has an internal Automatic Voltage Regulator (AVR) filtering current fluctuations to keep the alternating current reaching the devices connected to the UPS stable.

    Specifications
    • UPS in two-module tower format: UPS and batteries (BAT).
    • Operating voltage: 230V with 50 or 60Hz auto-detection. Auto-detection 4.2A.
    • Features an AC power connection terminal (Terminal Block type) in the UPS module. INPUT AC (L.N, GND), OUTPUT AC (L, N, GND).
    • The UPS module connects to the battery module (BAT) via a DC cable supplied with the equipment.
    • Operating modes: On-line, battery mode, bypass mode, eco mode, frequency converter mode, fault mode.
    • LCD display for monitoring the UPS operating mode.
    • Front panel with ON/MUTE start buttons, Select to display UPS parameters, OFF/ENTER, UPS shutdown and confirmation when in configuration mode.
    • Audible alarm at startup, battery mode, overload, low battery and UPS failure.
    • Capacity: 10000VA / 10000W load, possibility of connecting a battery bank to increase UPS autonomy.
    • The battery module consists of 20 12V 9AH batteries.
    • Startup time: 7 to 10 seconds.
    • Autonomy: backup for loads >80% is limited to 4min. For loads between 70%, the limit is 10min. Below 70%, autonomy is not limited.
    • Features RJ45 IN/OUT connector for protecting devices with this interface.
    • Possibility of installing an SNMP module for remote UPS management via Local network or Internet (not included).
    • Features USB connection and DB9 COM port for UPS management.
    • Software compatible with Windows, Mac OS X, Linux, Unix systems.
    • UPS Dimensions: 438 x 88 x 610 mm (width x height x depth).

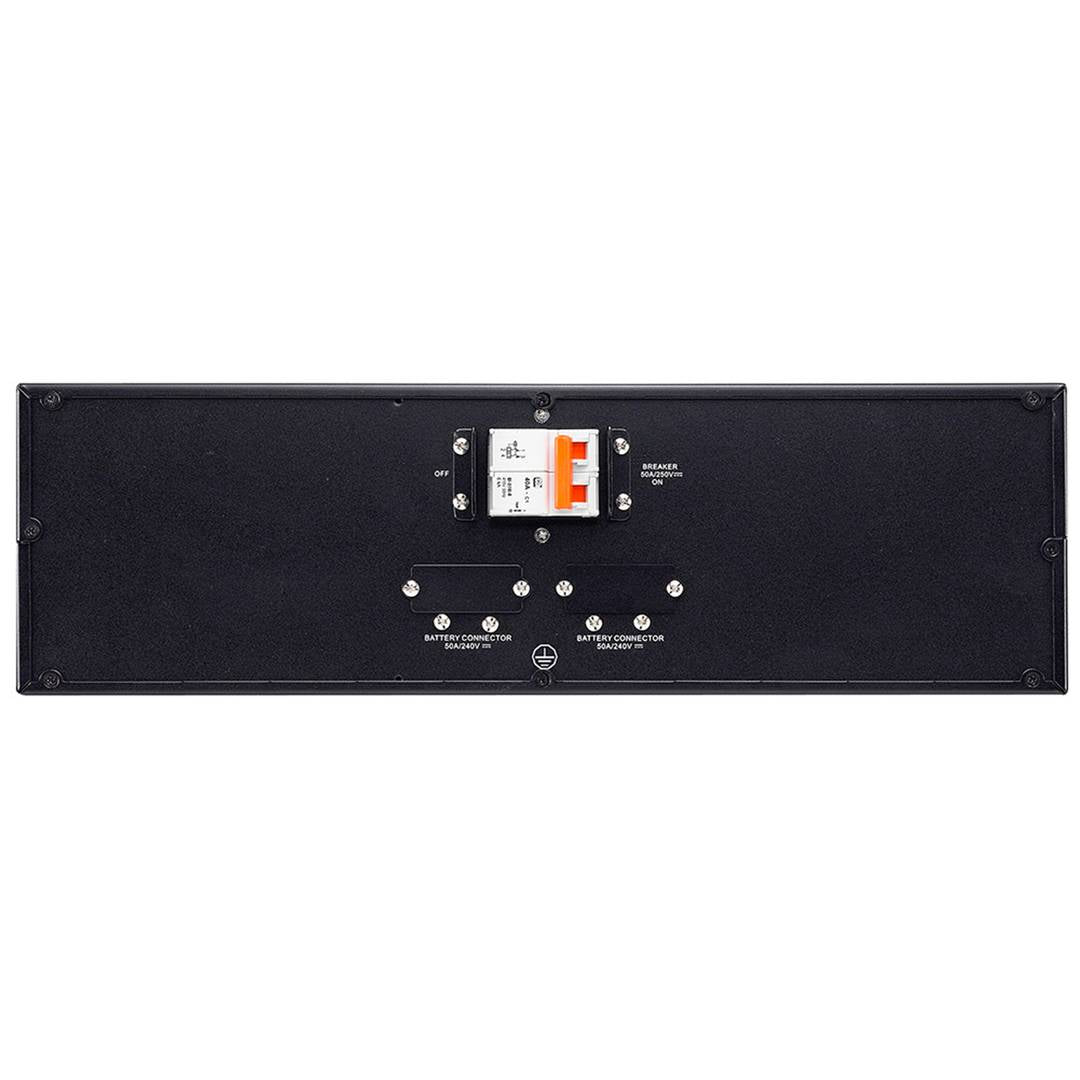

    • Battery Module Dimensions: 715 x 133 x 438 mm (width x height x depth).
    • Complies with regulations: ISO 9001, ISO 14001 and RoHS.
